รายละเอียดสินค้า |
เครื่องบันทึกเสียงแบบมือถือ TASCAM DR-44WL ชุดไมค์บันทึกเสียง ไมโครโพนสำหรับบันทึกเสียง DR-44WL ไมค์บันทึกเสียง จากแบรนด์ TASCAM

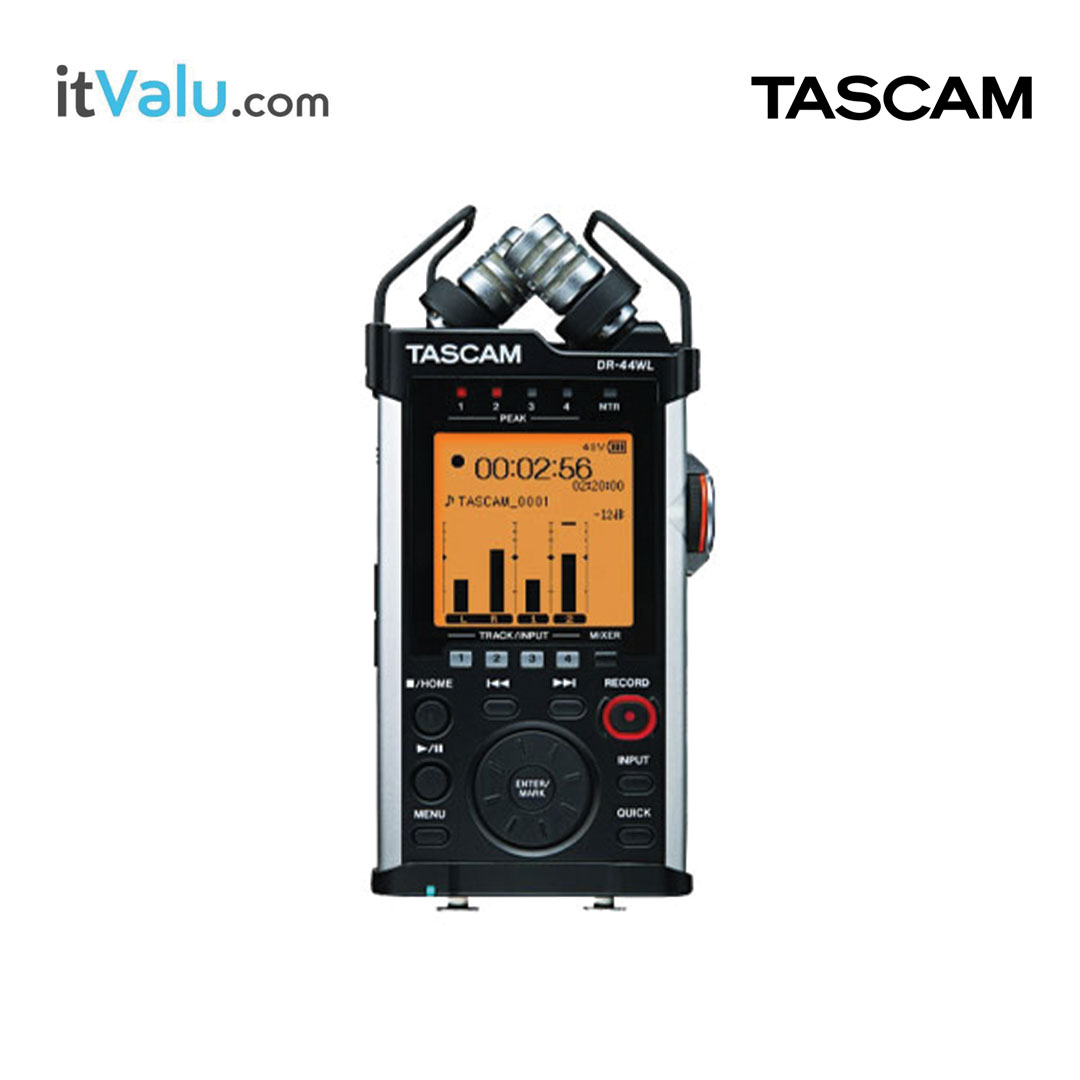

TASCAM DR-44WL
Portable Handheld Recorder with Wi-Fi
Groundbreaking Four-Track Recorder with Stereo Mics, XLR Mic Inputs and Wi-Fi
TASCAM’s DR-44WL is the latest recording innovation from TASCAM. It starts with high-quality stereo condenser microphones, updated with a new XY pattern and high-performance mic components. Two locking XLR inputs feed TASCAM’s latest microphone preamp design, with the lowest noise level and richest sound available in a portable recorder.
คุณสมบัติ
Recorder Section
- Supported WAV recording formats: 44.1k/48k/96kHz, 16/24bit, WAV/BWF format
- Supported MP3 recording format: 44.1k/48kHz, 32k to 320kbps MP3
- Recording media: SD/SDHC/SDXC card (up to 128GB SDXC card)
Recording Hardware
- Cardioid stereo condenser microphones fixed in X-Y position
- High sound pressure design captures levels up to 132dB SPL
- Innovative shock mount structure reduces physical noise
- XLR/TRS inputs compatible with mic or line level (-10 or +4dBu)
- +48V phantom power supply for condenser microphones
- PGA (programmable gain amplifier) and Cirrus Logic CS42L52 audio codec for low-noise, high-performance audio recording
Key Features
- MTR mode enables multitrack music production
- Four-track mode supports advanced recording
- Remote control, file transfer and streaming playback using 2.4GHz Wi-Fi
- Wi-Fi connects directly to smartphone without a router
- Full remote control using the free TASCAM app for iOS and Android
- Recorded audio can be posted directly to SoundCloud using the TASCAM DR Control app
Recording Functions
- Dual level recording function allows simultaneous recording of a second file at a lower level
- Dual-format recording function allows simultaneous recording of both WAV and MP3 files
- Automatic level optimization functions (Peak Reduction & Limiter)
- Low-cut filter with four selectable frequencies (40/80/120/220Hz)
- Pre-recording buffer records up to 2 seconds prior to starting recording
- Automatic track increment function that can be set according to the application (level, elapsed time or manual)
- Auto recording function that can detect the signal input signal level and automatically start recording
- Automatic mark function that adds marks according to preset conditions (peak detection or manual)
Playback Functions
- Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
- A-B Loop playback function that is convention for music rehearsal
Editing Function
- Automatic division function that divides files at marks (manual division also possible)
- M-S decoding function for utilizing M-S microphones
Other Functions
- Reverb effect for vocal and instrument resonance
- Automatic power-saving function that prevents unnecessary use of battery power
- Resume function that retains the last stop position when power is turned back ON
- Chromatic tuner and a metronome are available in 4-track mode (V1.10)
- File name format can be set to use a user-defined word or the date
- Audio files created on computers can be played (only in formats compatible with this product)
Other Hardware
- Built-in monaural speaker with 0.3W output
- 128×128 pixel oversized graphic LCD with backlight
- USB 2.0 high-speed file transfer to a computer
- Stereo mini headphone line output / headphone output connector
- Powered by four AA batteries, USB bus power, or AC adapter
- Long-time operation of over 16 hours using the internal batteries (Alkaline battery, 16/44.1, 2ch, Wi-Fi OFF)
- Quality construction with aluminum side panels and genuine brass mic guards for durability
- Carrying strap connection
- Tripod attachment screw-hole
- 4GB microSD card and SD card adapter are included
- Standard accessories: AC adapter, windscreen, grip that is compatible with mic stands, shoe mount adapter, case
- RoHS certified
สเปต
|
DR-22WL
|
DR-44WL
|
Recording media |
microSD card (64MB to 2GB), microSDHC card (4GB to 32GB), microSDXC card (48GB to 128GB) |
SD card (64MB to 2GB), SDHC card (4GB to 32GB), SDXC card (48GB to 128GB) |
Recording format
|
|
WAV/BWF
|
|
Sampling frequency |
44.1k/48k/96k Hz |
Quantization bit rate |
16/24-bit |
MP3
|
|
Sampling frequency |
44.1k/48k Hz |
Recording bit rate |
32k/64k/96k/128k/192k/256k/320k bps |
Playback bit rate |
32kbps to 320kbps |
Number of channels |
2-channels (Stereo) |
4-channels |
4CH mode |
– |
Mono (Up to 4 files) Stereo (Up to 2 files) Stereo (1 file) + Mono (Up to 2 files) |
MTR mode |
– |
Mono (Up to 4 files) |
Analog Inputs
|
|
EXT MIC/LINE IN
|
|
Connector |
1/8″ (3.5mm) stereo mini jack, Plug-in power Compatible |
XLR-3-31, 1/4″ (6.3mm) TRS standard jack, Phantom Power Compatible |
Input Impendance |
10kΩ or more |
2.2kΩ or more |
Nominal Input Level |
–20dBV |
– |
Maximum Input Level |
–4dBV |
– |
EXT IN [MIC]
|
|
Nominal Input Level |
– |
–17.3dBu ±2dB |
Maximum Input Level |
– |
–1.3dBu ±2dB |
EXT IN [LINE]
|
|
Nominal Input Level |
– |
+4dBu |
Maximum Input Level |
– |
+20dBu |
Analog Outputs
|
|
PHONES/LINE OUT
|
|
Connector |
1/8″ (3.5mm) stereo mini jack |
LINE OUT |
|
Nominal Output Level |
–14dBV(10kΩ load) |
Maximum Output Level |
+2dBV(10kΩ load) |
PHONES
|
|
Maximum Output |
20mW + 20mW (32Ω load) |
USB
|
|
Connector |
Micro-B type 4pin |
Format |
USB2.0 HIGH SPEED mass storage class |
Wi-Fi
|
|
Compliant |
IEEE 802.11b/g/n (2.4GHz only)) |
Communication mode |
Simple access point (Limited AP) |
Security |
WPA2-PSK (WPS2.0-supported) |
Tripod attachment screw-hole |
1/4″ Tripod attachment screw-hole |
Power Supply |
2 AA batteries (alkaline or NiMH),
USB bus power from a computer, AC adapter (TASCAM PS-P515U, sold separately)
|
4 AA batteries (alkaline or NiMH), USB bus power from a computer, Dedicated AC adapter (GPE053B supplied with the unit) |
Power consumption |
1.7W (maximum) |
2.5W (maximum) |
Battery operation time |
*All times are approximate. |
Format |
WAV, 44.1kHz, 16-bit |
Alkaline batteries (EVOLTA)
|
|
Recording |
17.5 hours (With built-in mic) |
16 hours (When MIC input is selected, phantom is not used) |
Playback |
19 hours (With built-in speaker) |
– |
Ni-MH batteries (eneloop)
|
|
Recording |
13.5 hours (With built-in mic) |
12 hours (When MIC input is selected, phantom is not used) |
Playback |
14.5 hours (With built-in speaker) |
– |
Dimensions (W×H×D) |
2.1″ × 6.1″ × 1.4″ / 52.5 x 155 x 36.6 mm |
3.1″ × 6.3″ × 1.7″ / 79 x 162.2 x 42.5 mm |
Weight |
6.0 oz. / 170 g (including batteries) 4.3 oz. / 123 g (excluding batteries) |
12.2 oz. / 346 g (including batteries) 8.8 oz. / 251 g (excluding batteries ) |
Accessories |
4GB microSD card (in the unit), USB cable, 2 AA batteries for confirming operation, Owner’s Manual (including warranty) |
AC adapter (GPE053B), 4GB microSD card with adapter (in the unit), USB cable (80 cm), 4 AA batteries for confirming operation, Fur windscreen, Mic stand adapter, Shoe mount adapter, Soft case, Owner’s Manual (including warranty) |
Audio Performance
|
Frequency response |
20Hz to 20kHz +1dB/–3dB (Fs 44.1kHz, EXT IN to LINE OUT, JEITA) 20Hz to 22kHz +1dB/–3dB (Fs 48kHz, EXT IN to LINE OUT, JEITA) 20Hz to 40kHz +1dB/–3dB (Fs 96kHz, EXT IN to LINE OUT, JEITA) |
Distortion |
0.05% or less (Fs 44.1k/48k/96k Hz, EXT IN to LINE OUT, JEITA) |
S/N ratio |
92dB or more (Fs 44.1k/48k/96k Hz, EXT IN to LINE OUT, JEITA) |
น้ำหนัก |
0.346 kg |
ขนาด |
79 × 42.5 × 162.2 mm |
ยี่ห้อ |
TASCAM
|
|
